Dolphicam 2

Ultrasonic testing re-imagined, use an "ultrasonic camera" see a live image at 20-100 frames per second. The Dolphicam is flexible, adaptable and intuitive; made with expanded capability in mind and designed to be learned quickly by experts and non-experts alike.

With an inspection depth of up to 60mm it can be utilized to inspect metals, multi-materials, carbon and glass fibre reinforced polymers as well as glass laminate aluminium reinforced epoxy. Utilizing unique 2D matrix transducer technology the Dolphicam enables a wide variety of transducer frequencies and custom transducer design. If you add extreme data signal processing capacity as well as a smooth user experience to that, you have the ultimate NDT tool.

Operation Video

Features

Real-time images.
Frequency range from 0.5 to 15 MHz.
128 x 128 transducers electrodes.
16384 transducer elements.
Size 3,8 x 3,8 cm.
2D and 3D images.
A-, B-, and C-scans.
Amplitude & Time of flight.

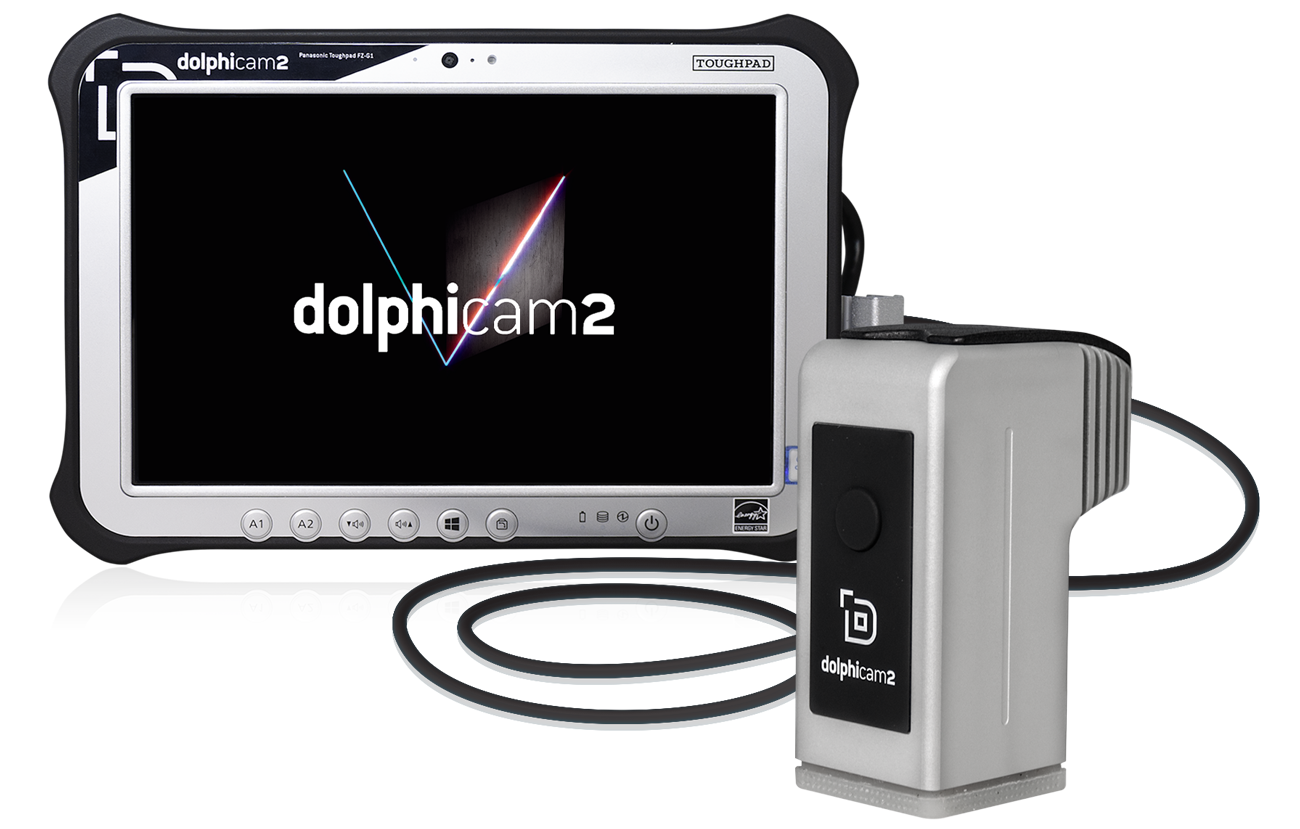

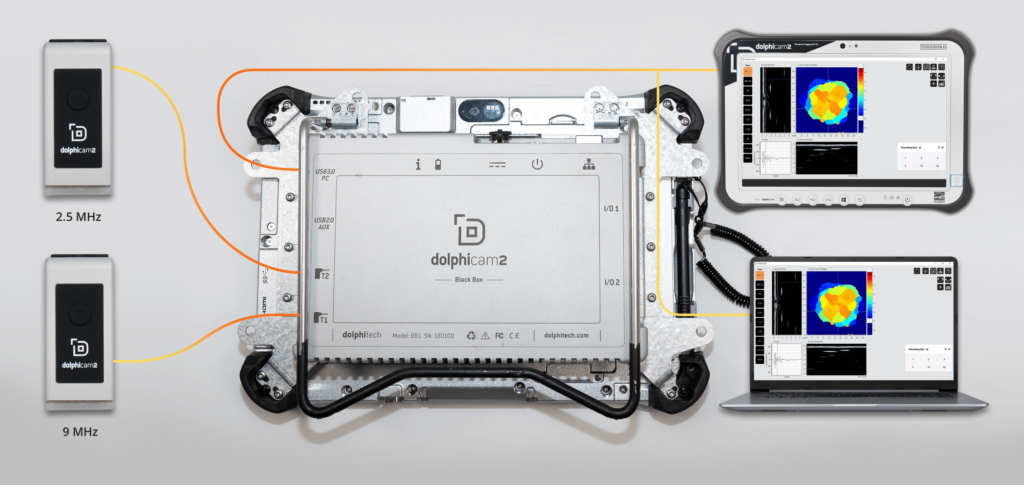

The Platform

The Dolphicam is a tool for experts and non-experts doing non-destructive testing. Dolphicam2 has unique signal processing which is visualized with great user experience.

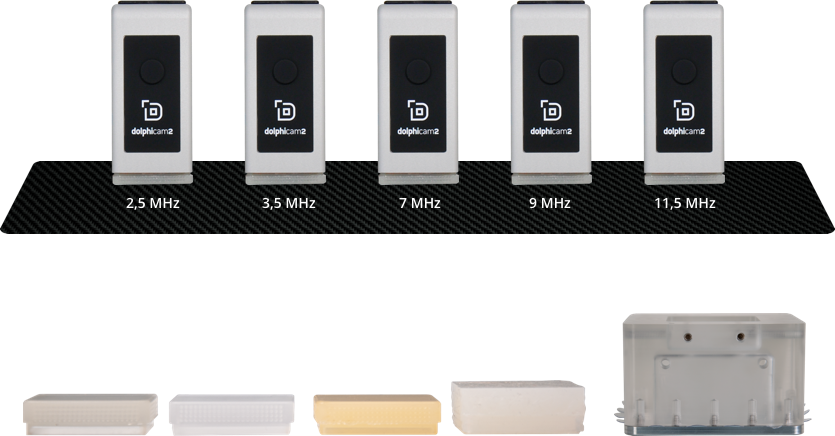

Unique Combination of Frequencies and Couplings

The combinations of different TRMs and couplings of varying softness/hardness and sizes enable many possibilities of inspecting multiple types of materials.

Model	Options	Description	Technical Specifications
TRM 1.5 MHz	TRM-EA-1.5MHz (no delay line) TRM-EC-1.5MHz (12mm aqualene 320)	The 1.5MHz transducer module (TRM) is currently our lowest frequency on offer, and is designed for maximum penetration of thick GFRP and thick, out-of-autoclave CFRP with porosity. Applications include wind turbine blades, marine GFRP and thick section GFRP piping. Typical component thicknesses are around 1-60mm.	Transducer Type Matrix (2D-array) Transducer Elements 64x64 (4,096) Transducer Aperture 32 x 32 mm Element Pitch 500 μm Center Frequency 1.5 MHz -6dB Frequency Bandwidth 110% Sample Rate 50 MHz Acquisition Rate A-scans 100,000 – 500,000 datasets per second Acquisition Rate 3D 10-40 3D volumes per second
TRM 2.5 MHz	TRM-BE-2.5MHz (no delay line) TRM-BG-2.5MHz (8mm aqualink 100) TRM-BF-2.5MHz (8 mm aqualene 320) TRM-BH-2.5MHz (12 mm aqualene 320)	The 2.5 MHz transducer module (TRM) is well-suited to thicker section and lower grade composite material inspection. These include GFRP, out-of-autoclave CFRP as well as thick, coarse-grained metals. Applications include wind turbine blades, marine GFRP and CFRP, GFRP piping and thermal power. Typical component thicknesses are around 1-50mm	Transducer Type Matrix (2D-array) Transducer Elements 128x128 (16,384) Transducer Aperture 32 x 32 mm Element Pitch 250 μm Center Frequency 2.5 MHz -6dB Frequency Bandwidth 90% Sample Rate 50 MHz Acquisition Rate A-scans 100,000 – 500,000 datasets per second Acquisition Rate 3D 10-40 3D volumes per second
TRM 3.5 MHz	TRM-AE-3.5MHz (no delay line) TRM-AG-3.5MHz (8mm aqualink 100 TRM-AF-3.5MHz (8 mm aqualene 320) TRM-AH-3.5MHz (12mm aqualene 320) TRM-AA-3.5MHz (8 mm rexolite)	The 3.5 MHz transducer module (TRM) is an excellent choice for CFRP applications, as the frequency is low enough to travel through CFRP but still high enough to get a great resolution on your inspection. This TRM is approved and recommended to be used within both the aerospace and automotive industries for CFRP inspection. It also works well for thicker metals, and for inspection of attenuative metals such as stainless steel and Inconel. Typical component thicknesses are around 1-40mm*.	Transducer Type Matrix (2D-array) Transducer Elements 128x128 (16,384) Transducer Aperture 32 x 32 mm Element Pitch 250 μm Center Frequency 3.5 MHz -6dB Frequency Bandwidth 100% Sample Rate 50 MHz Acquisition Rate A-scans 100,000 – 500,000 datasets per second Acquisition Rate 3D 10-40 3D volumes per second
TRM 5 MHz	TRM-CH-5MHz (no delay line) TRM-CJ-5Mhz (8mm aqualink 100) TRM-CI-5MHz (8 mm aqualene 320) TRM-CK-5MHz (12 mm aqualene 320) TRM-CC-5Mhz (8mm rexolite)	The 5 MHz Transducer module (TRM) sits at the middle of our range and is a fantastic all-rounder, well-suited to both metallic and composite applications. It provides superior resolution while maintaining good penetration through a wide variety of materials . Applications include heavy industry, aerospace and automotive. Typical component thicknesses are around 1-30mm*.	Transducer Type Matrix (2D-array) Transducer Elements 128x128 (16,384) Transducer Aperture 32 x 32 mm Element Pitch 250 μm Center Frequency 5 MHz -6dB Frequency Bandwidth 120% Sample Rate 50 MHz Acquisition Rate A-scans 100,000 – 500,000 datasets per second Acquisition Rate 3D 10-40 3D volumes per second
TRM 8 MHz	TRM-DB-8MHz (8 mm rexolite)	The 8 MHz transducer module (TRM) is a great choice for a wide range of metallic applications. This frequency provides high resolution for great sensitivity, while also providing enough penetration for fine-grained metal. It is also capable of inspection of high-grade composites, such as aerospace CFRP. Other applications include process piping, Typical component thickness range are around 1-20mm*.	Transducer Type Matrix (2D-array) Transducer Elements 128x128 (16,384) Transducer Aperture 32 x 32 mm Element Pitch 250 μm Center Frequency 8 MHz -6dB Frequency Bandwidth 120% Sample Rate 50 MHz Acquisition Rate A-scans 100,000 – 500,000 datasets per second Acquisition Rate 3D 10-40 3D volumes per second
TRM 10 MHz	TRM-DA-10MHz (8 mm rexolite)	The 10MHz transducer module (TRM) is our highest frequency model and provides great sensitivity for inspections of thinner components. The short wavelengths generated by this TRM provide high spatial resolution through the depth of the component. Sheet metal, adhesive bonding layers, thin metallic vessels and pipes can all be inspected. Typical component thicknesses are around 1-15mm.	Transducer Type Matrix (2D-array) Transducer Elements 128x128 (16,384) Transducer Aperture 32 x 32 mm Element Pitch 250 μm Center Frequency 10 MHz -6dB Frequency Bandwidth 115% Sample Rate 50 MHz Acquisition Rate A-scans 100,000 – 500,000 datasets per second Acquisition Rate 3D 10-40 3D volumes per second

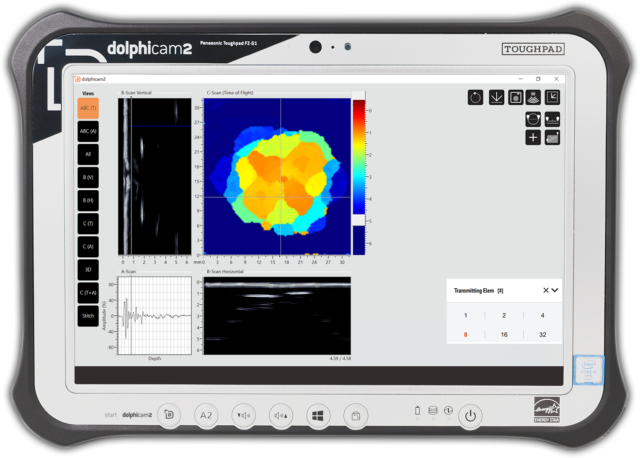

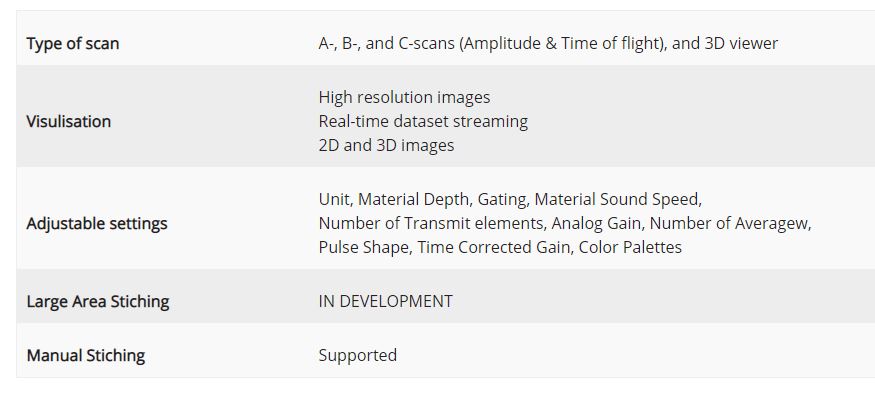

Scans

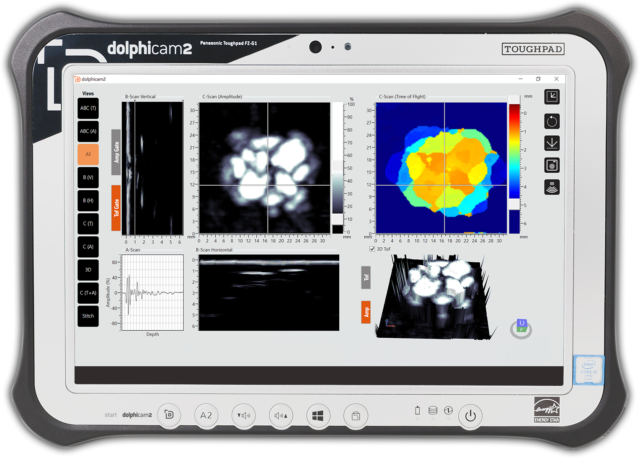

The Dolphicam2 Software has a user friendly dashboard with highly customizable and configurable settings.

Real time images.

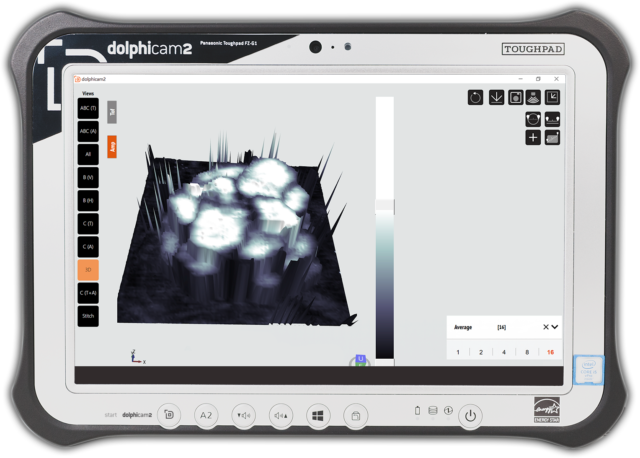

2D and 3D images.

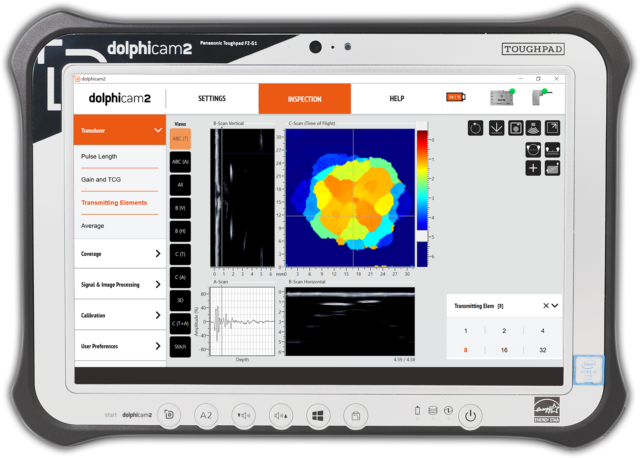

A-, B-, and C-scans.
Amplitude & Time of flight.
Large area stitching.
“Traffic light” color palettes

Configurable Settings

Unit, material depth, number of Amp Gates, number of ToF
Gates, Material Sound Speed, Transmitting Elements, Analog
Gain, Number of Averages, Transmitting Pulse Shape, Time
Corrected Gain, Time of Flight Palette, Amplitude/B-scan
Custom Palettes

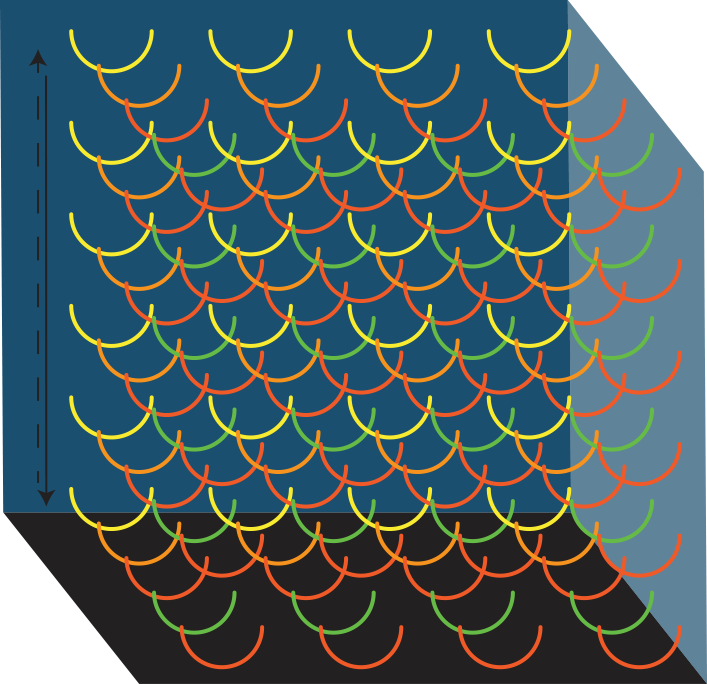

Dolphitech Matrix Transducers VS Phased Array

Dolphitech Matrix transducers have transducer elements in a 2-dimensional array. Since the transducer directly covers the area of inspection, no encoder system is needed to calculate the position of each element. Minimising the risk of positional errors due to faults or imprecision in the encoder system.

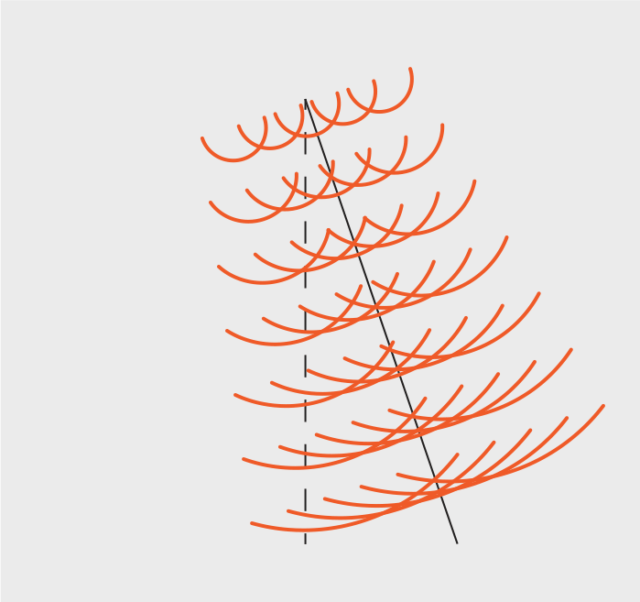

Phased array transducers contain a number of individual transducers that can be pulsed individually to steer and focus the sound beam in a specific direction. Linear arrays are usually used in combination with an encoder system matching the signal with positional information to build a 2-dimensional image.

Substantial improvements in resolution are to be expected from a Dolphicam Ultrasound camera system compared to an Olympus MX phased array system.

MATRIX TRANSDUCERS PHASED ARRAY

More Data Than Enough Data

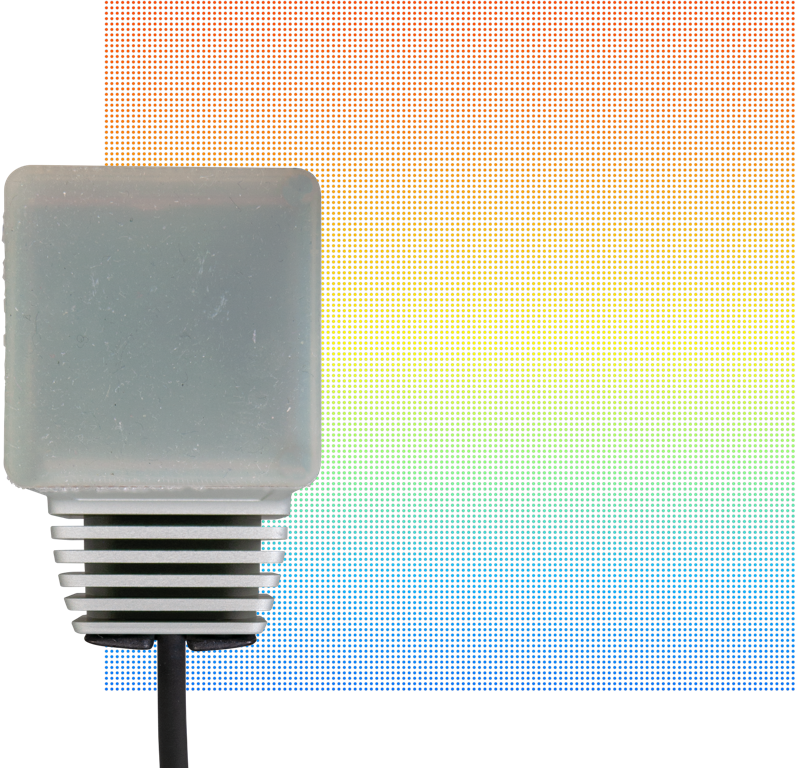

The TRM has 128 horizontal and 128 vertical transducer electrodes. This makes a transducer element where one horizontal line crosses a vertical line. I total 16.384 transducer elements send and receive sound to create the data with a frame rate from 10 to 100 frames per second.

In short, scans deliver more data than we can use for now. For you, this means that the product you buy today only will get better tomorrow.

Ultrasound

Turn on the device and start scanning (1 min from start to ready to scan). For a user you will spend less time calibrating and more time fixing.

The «Traffic lights» pallet or real-time dataset streaming visualizes the scan in a way that impresses experts, and lets non-experts understand what they see.

Large amounts of Data is being processed to a user-friendly dashboard.

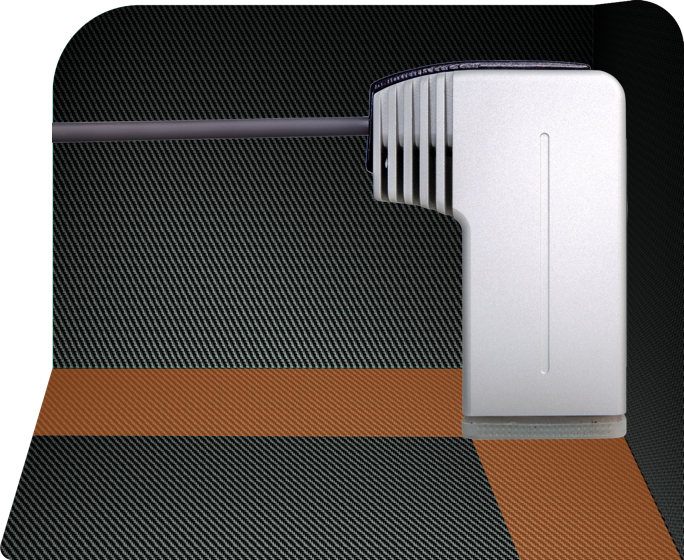

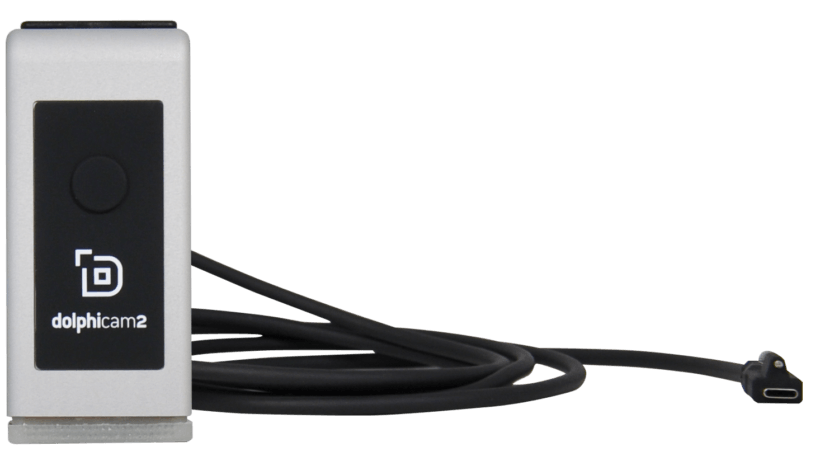

Small, Flexible and Mobile

Its size and weight makes it easy to hold, and access places that are really difficult to scan. The TRM is made small, ergonomic and fits nicely in your hand.

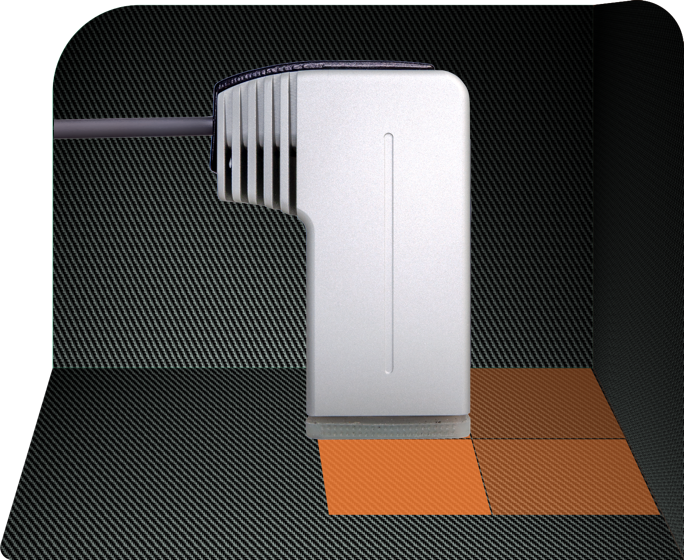

Stitching

Dolphicam comes with multiple different stitching solutions, from manual grid tool to fully automated systems. Depending on your needs for accuracy and speed, the Dolphicam can offer different ways for scanning large areas and combining into one image.

FTD - Flexible Transducer Development

Transducer technology is very flexible, allowing for customizable design for customers with specific needs.

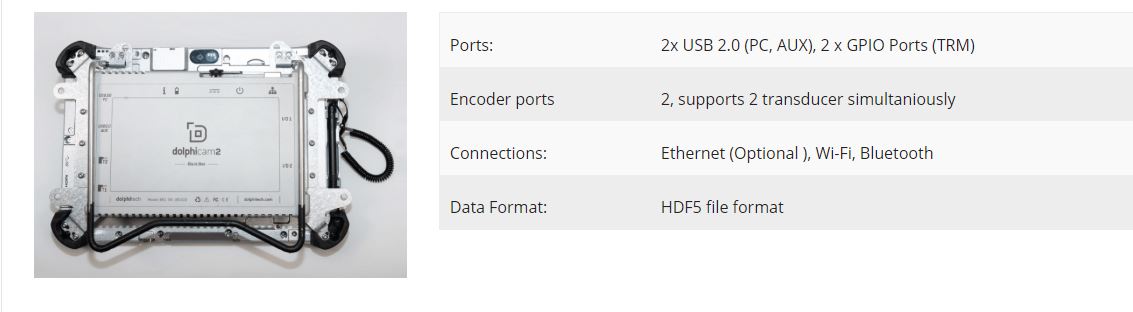

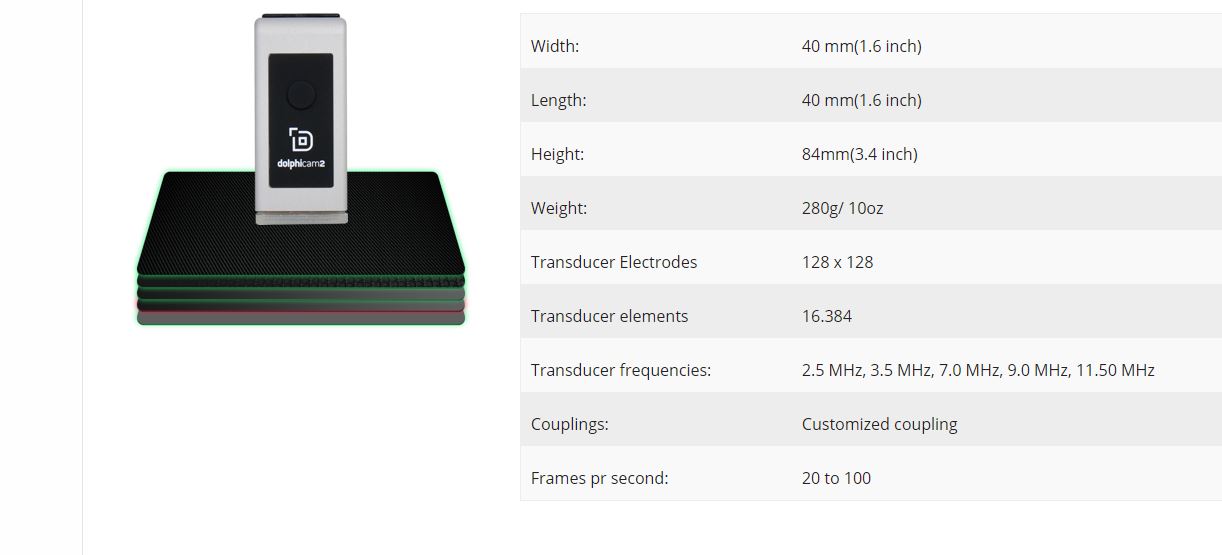

Specifications

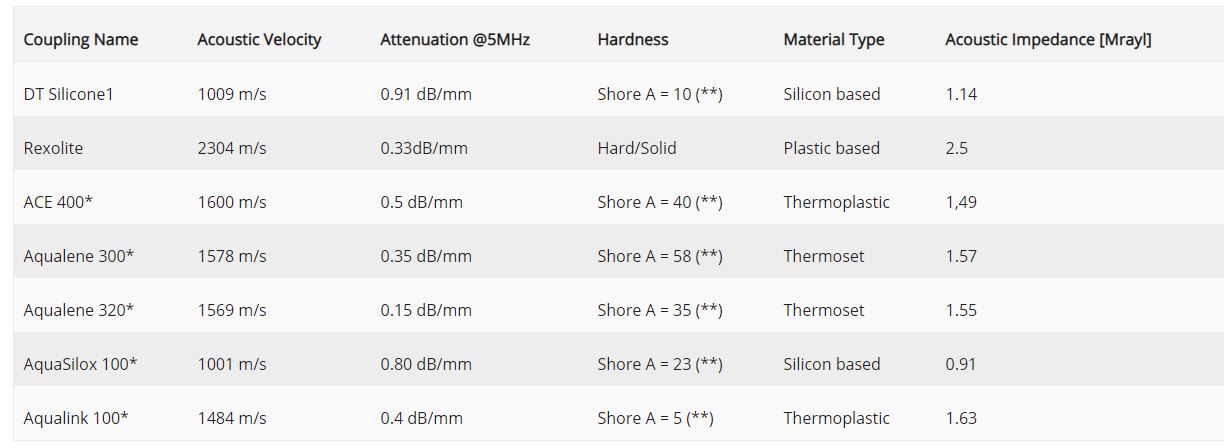

COUPLINGS (Click here to view larger)
